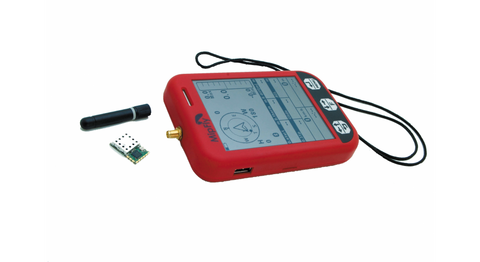

MipFly One C
MipFly One C is the next generation of our Vario lineup, it integrates a Much requested FANET+ Module which transmits the real-time position, speed, altitude and heading of the pilot to all surrounding aircraft's.
The main platform of the Variometer runs Linux so that further development on the device to be facile. This feature also enables us or anyone else who wants to contribute or to modify his/her instrument to easily add new features. FULL-SIZE USB ports add a lot of hardware expandability possibility to the device, preflight or inflight, without the need to use a fragile micro USB port.
The 4.4" screen readability of the device is incredible. Literary we spared no expenses on this part of the instrument. No compromise. You can keep the instrument with the sun directly reflecting into your eyes and still be able to read from it. Also, the refresh rate of the screen is pretty good at 20 fps together with a wide range of working temperatures.
The sensor system on the device consists of two separate sub-modules. One is the GPS system comprising of a high precision Ublox M8N receiver commonly used on drones because of its performance together with a high sensitivity patch antenna. The second sub-module is the real-time pressure and sensor fusion system responsible for the vertical speed measurement, filtering and approximation by sensor fusion.
Main Features
FANET+ (Broadcast current GPS position, Altitude, Vertical Speed and unique ID)
High-contrast monochrome LCD
Keyboard with clearly detectable, glove-friendly keys
Reliable and proven high-sensitivity instant vario with integrated IMU
Easy firmware updates
Connect to PC via USB
IGC file for each flight
Wind direction and wind speed
Airspace warnings
Height overground
Waypoints
Current glide ratio
Current flying direction
Customizable vario tone frequency, sensitivity, audio mode, climb-tone
Graphical instant and average climb indicator
Maps
Live tracking
Customizable UI using our online builder
Flight Sharing
Bluetooth or Wireless extensions
AGL
Can be used as a power bank
FAI CAT I approval pending
Thermal Assistant
Package Includes:
The main platform of the Variometer runs Linux so that further development on the device to be facile. This feature also enables us or anyone else who wants to contribute or to modify his/her instrument to easily add new features. FULL-SIZE USB ports add a lot of hardware expandability possibility to the device, preflight or inflight, without the need to use a fragile micro USB port.
The 4.4" screen readability of the device is incredible. Literary we spared no expenses on this part of the instrument. No compromise. You can keep the instrument with the sun directly reflecting into your eyes and still be able to read from it. Also, the refresh rate of the screen is pretty good at 20 fps together with a wide range of working temperatures.
The sensor system on the device consists of two separate sub-modules. One is the GPS system comprising of a high precision Ublox M8N receiver commonly used on drones because of its performance together with a high sensitivity patch antenna. The second sub-module is the real-time pressure and sensor fusion system responsible for the vertical speed measurement, filtering and approximation by sensor fusion.
Main Features
FANET+ (Broadcast current GPS position, Altitude, Vertical Speed and unique ID)
High-contrast monochrome LCD
Keyboard with clearly detectable, glove-friendly keys
Reliable and proven high-sensitivity instant vario with integrated IMU
Easy firmware updates
Connect to PC via USB
IGC file for each flight
Wind direction and wind speed
Airspace warnings
Height overground
Waypoints
Current glide ratio
Current flying direction
Customizable vario tone frequency, sensitivity, audio mode, climb-tone
Graphical instant and average climb indicator
Maps
Live tracking
Customizable UI using our online builder
Flight Sharing
Bluetooth or Wireless extensions
AGL
Can be used as a power bank
FAI CAT I approval pending
Thermal Assistant
Package Includes:
- 1 x Mipfly One C Vario
- 1 x 16Gb Micro SD
- 1 X USB to Bluetooth adapter
- 1 X Softcase
- 1 x Hardcase
- 1 x Tempered glass (already mounted)
- 1 x Antenna (868 Mhz)
Technical Specs
- Display size 4.4 inch, 89.6x67.2 mm (true viewing area).
- Display resolution 320x420 pixels.
- Battery capacity (Lithium-Ion) 7200 mAh.
- Battery charging Micro USB charging port, the device can be charged and used as a mass storage device or a Serial Communication can be established via this port.
- Charging time ~ 8 Hours.
- Autonomy -16 Hours.
- Weight 268 Grams.
- Size 148 x 90 x 24 mm (without antenna) 195 x 90 x 24 mm (with antenna) Length x Width Thickness
- GPS sensitivity Industry-leading -167 dBm Navigation sensitivity.
- GPS GNSS Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
- Operating System Linux
- Real-time coprocessor Cortex M3 with a CPU speed of 72 MHz.
- Barometer Dual Barometer system with high resolution of under 10 cm.
- Inertial Measurement Unit The 3-axis Gyroscope, accelerometer, Magnetometer, ensure good response time and provide data for the AHRS System.
- Audio 2 W 8 ohm speaker ensures over 80 dBm sound level (measured at 30 cm ).
- Expandability 2 X full-Size USB port's (one external and one internal)
Extras
- USB to Bluetooth Adapter USB to Bluetooth 4.0 Adapter, pre-fitted on the internal full-size USB port.
Warranty
- Warranty 2 Years
